uPVC Ceiling Panel

Waterproof, Termite-Proof, Fire-Retardant Ceiling System — 300mm Wide — 5 Colors — 25–30 Year Maintenance-Free Service Life

uPVC Ceiling Panel System

The Permanent Fix for Moldy, Warping, Termite-Damaged, and Constantly-Repainted Ceilings

Our uPVC Ceiling Panels give any space a bright, smooth, non-organic surface that is permanently resistant to moisture, mold, termites, ammonia, bleach, and fire. Once installed, they require nothing more than an occasional wipe-down for the next 25–30 years.

A tongue-and-groove interlocking system allows a two-person crew to install 40–60 m² per day with no special tools. Available in 5 colors — including realistic wood-grain finishes for a premium interior look.

Request a Quote or Sample Quality Standards

Why uPVC Outperforms Every Conventional Ceiling

💧

100% Waterproof

Impervious to moisture, humidity, and direct water. Zero warping, swelling, bubbling, or delamination — even after roof leaks or high-pressure wash-down.

🐜

Termite & Pest Proof

Zero cellulose. Completely indigestible to termites, carpenter ants, rats, and wood-boring beetles that routinely destroy plywood and fiber cement ceilings.

🔥

Fire-Retardant (Class B/B2)

Self-extinguishing when flame is removed. ISO 11925-2 compliant. Does not propagate fire. Critical for high-fire-risk environments like poultry farms and commercial kitchens.

🧼

Hygienic Smooth Surface

Non-porous. Bacteria and mold spores cannot embed. Clean with water and mild detergent. Meets hygiene requirements for food processing and pharmaceutical facilities.

🔇

Sound & Thermal Insulation

Hollow-core profile provides measurable sound attenuation between floors and reduces thermal transfer, lowering air-conditioning energy consumption.

🎨

5 Permanent Colors

Natural White, Antique White, Light Walnut, Brown Mahogany, White Oak. Color is co-extruded throughout — will never chip, peel, or fade in Philippine climate conditions.

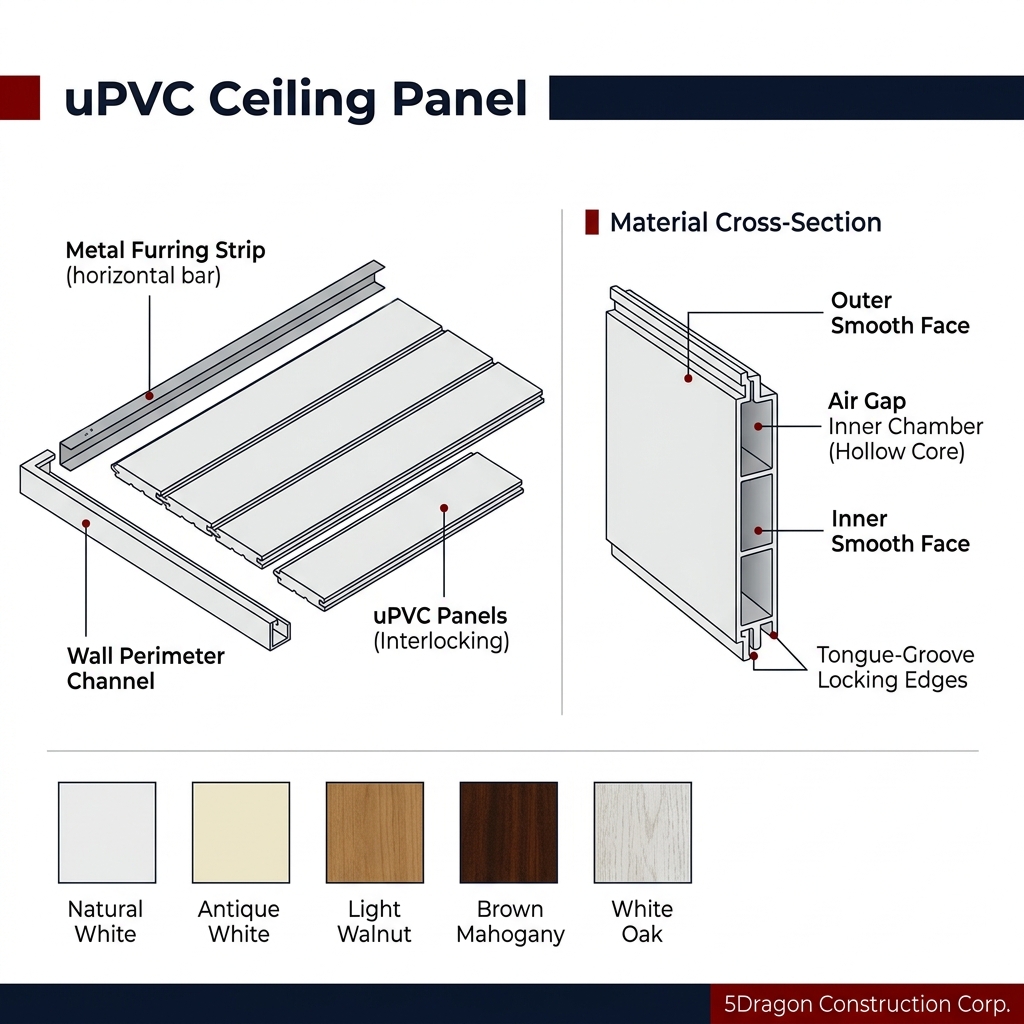

Dimensions, Specs & Installation Guide

Panel Specifications

Dimension / Property	Value
Panel Width	300 mm (effective face)
Panel Thickness	8.0 mm (hollow dual wall)
Standard Lengths	3.0 m and 4.0 m
Panel Weight	~2.2 kg per linear meter
Max Furring Span	600 mm c/c (400 mm recommended)
Material	Rigid uPVC with Ca/Zn stabilizers + TiO₂ UV protection
Fire Rating	Class B / B2 (ISO 11925-2)
Chemical Resistance	pH 2–12, ammonia, bleach, disinfectants
Service Life	25–30 years maintenance-free
Colors Available	5 (including 3 wood-grain options)

7-Step Installation Summary

#	Installation Step
1	Plan layout — equal-width panels at both end walls
2	Fix perimeter U-channel at all 4 walls (check level)
3	Install furring strips perpendicular to panel run, max 600mm c/c
4	Slide first panel into wall channel; staple groove flange to furring
5	Click each subsequent panel tongue-into-groove; fasten groove flange
6	Cut final panel lengthwise; fix with concealed plastic clip
7	Install PVC cornice trim and cover moldings to finish

✅ Pro Tip: Use stainless steel staples in bathrooms, farm buildings, and food processing areas — galvanized staples will rust and bleed through the panel surface in high-humidity environments.

Why uPVC Works in Philippine Agricultural Buildings

Poultry and hog farming facilities in the Philippines present the harshest possible ceiling conditions: sustained ammonia concentrations of 50–100ppm from animal waste, near-100% relative humidity, weekly bleach or quaternary ammonium disinfectant wash-downs, and continuous heat. Every conventional ceiling material fails within 3–7 years in these conditions. uPVC is completely inert to ammonia at any practical concentration, impervious to bleach and acidic disinfectants, and requires no repainting, patching, or replacement for 25–30 years.

30-Year Lifecycle Cost Comparison

Ceiling Type	Initial Cost	Maintenance (per 5 yrs)	Replacements in 30 yrs	30-Year Total
uPVC Panel (5Dragon)	Moderate	Minimal (clean only)	None	Lowest
Gypsum Board	Low	High (repaint, patch)	1–2 replacements	High
Painted Plywood	Low	Very High (rot, damage)	2–3 replacements	Very High
Fiber Cement	Moderate	Medium (repaint, cracks)	Partial replacements	Medium-High

Applications Across All Sectors

Residential: Bathrooms, kitchens, service areas, garages, and covered outdoor spaces in homes and condominiums
Commercial: Restaurants, food courts, supermarket wet sections, retail stores, hotel bathrooms
Industrial: Food processing plants, pharmaceutical clean rooms, cold storage facilities, hospital service areas
Agricultural: Poultry houses, hog farms, mushroom growing rooms, aquaculture facilities

For exterior waterproof roofing solutions, explore our uPVC Roofing product. For underground drainage systems, see our HDPE Dual Wall Corrugated Pipes. Contact 5Dragon for a free site assessment and quotation.
